CS-160-Trade-in and Recycle on oldmeters.com

second-handCS-160

Name: CS-150 / CS-160 color luminance meter Brand: Japan Japan (Japan) Introduction: The CS-150 and CS-160 color luminance meter body is light and compact, and is battery powered. It can be used to measure various brightness conditions a

Contact customer service to purchase the lease

payment：: WeChat payment Bank card Alipay

Commodity details

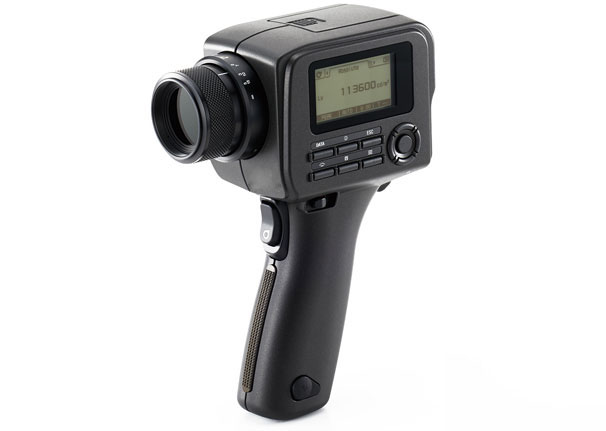

Name: CS-150 / CS-160 color luminance meter

Brand: Japan Japan (Japan)

Introduction:

The CS-150 and CS-160 color luminance meter body is light and compact, and is battery powered. It can be used to measure various brightness conditions and non-contact color measurement.
The new generation of these two instruments is an outstanding successor of CS-100A, whose functions and performance have been improved.
The two instruments have a wider range of measurement, and the new sensor they use is more consistent with the CIE 1931 color matching function.
To achieve accurate brightness measurement, the relative spectral sensitivity of the measuring instrument should perfectly match the visual sensitivity of the human eye. With the CIE spectral luminous efficiency V (lambda) as the representative, besides improving the performance, the correlation between CS-150 and CS-160 and V (lambda) has also been improved, and the measurement range has increased to 999900 cd/m2 (CS-150) and 9999000 cd/m2 (CS-160).

Specifications:

Model	Color luminance meter CS-150	Color luminance meter CS-160
type	Single point color luminance meter
Measuring angle	1 degrees	1/3 degrees
optical system	单反型，f=85mm F2.8透镜
visual angle	9 degrees
Relative spectral sensitivity	CIE 1931 color function approximation (x (lambda), y (lambda), Z (lambda))
Receiver	Silicon photosensitive element (3)
Minimum measurement area	14.4mm (1.3mm - when using close shot)	4.5mm (0.4mm - when using close shot)
focus distance	1012mm to infinity 213mm (when using close shot)
display mode	Absolute value, difference, ratio; Lv, x, y, Lv, U', V', Lv, Tcp, DUV, Lv, lambda D, DUV, Lv
Measurement mode	Luminance; (Lv) continuous, peak / valley values, DLv, Lv% (XY) Dx, Dy
Measuring time	AUTO (default): 0.7 to 4.3 seconds. MANUAL:0.7 to 7.1 seconds
Synchronous measurement	20 Hz to 400 Hz
Luminance unit	Cd/m Two Or FL (menu settings)
Brightness range	0.01 to 999900 cd/m Two	0.1 to 9999000 cd/m Two
accuracy	(brightness) + 2% + 1 digits	(brightness) + 2% + 1 digits
accuracy	(chroma) + 0.004 (5cd/m)Two Above)	(chroma) + 0.004 (50cd/m)Two Above)
Repeatability	(brightness) 0.2% 1 decimal places (chroma) 0.001 (10cd/m) TwoAbove) (chroma) 0.002 (5cd/m) TwoAbove)	(brightness) 0.2% 1 decimal places (chroma) 0.001 (100cd/m)Two Above) (chroma) 0.002 (50cd/m)Two Above)
Calibration standard	Japan standard / user standard switching mode
Standard luminance	10: set up by measuring or numeric input.
data storage	1000 group
display	External: 4 digit effective LCD display with backlight and dimming function. Viewfinder: 4 digit effective LCD display with backlight
port	USB2.0
Power Supply	2 section 5 battery, USB power supply, AC adapter (sold separately)
Operating temperature and humidity range	0~40 degree C, relative humidity: 85% or less (35 degrees C), no condensation.
Storage temperature and humidity range	0~45 degree C, relative humidity: 85% or less (35 degrees C), no condensation.
size	71 x 214 x 154mm
weight	850g (battery free)
Standard accessories	Lens cover, ND eyepiece filter, eyepiece cap, 2 section 5 battery, suitcase, wristband, USB connection line, data management software CS-S20
