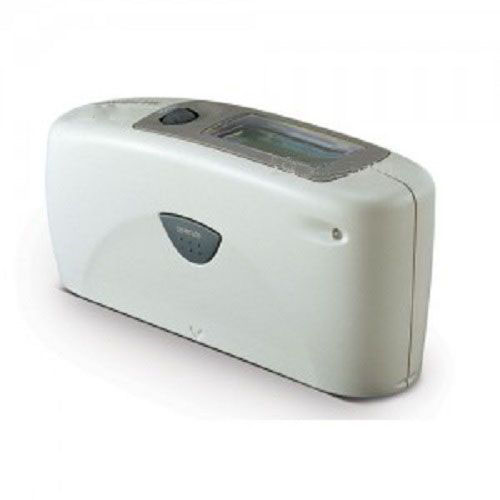

second-handUG60-MG268

You can measure different surfaces from plastic to metal. The measurement range is wide. The glossiness range is 0.0-2000gu. You can measure different surfaces from plastic to metal with a wide range of glossiness: 0.0-2000gu Product characteristics ★ pre

Commodity details

You can measure different surfaces from plastic to metal. The measurement range is wide. The glossiness range is 0.0-2000gu.

You can measure different surfaces from plastic to metal with a wide range of glossiness: 0.0-2000gu



Product characteristics

★ precision, small, portable, easy to operate and accurate glossmeter.

★ large screen LCD.

★ use roller operation, easy to select functions.

★ attached with the data transmission software, the data can be transmitted to the computer for image or mathematical analysis

The gloss difference can be measured by standard value / sample value display or pass / fail evaluation

★ measurement of gloss difference can be carried out through standard value / sample value display or pass / fail evaluation.



ModelUG60MG268
Measuring angle60 degrees20 degrees 60 degrees 85 degrees
light source

Tungsten filament lamp (2.5v/60mA)

* * *

Silicon photocell
Memory capacity (part)997x999
Power Supply9V layer battery
Measurement timesAbout 5000*IEC 6 LR 61About 3000*IEC 6 LR 61

measurement accuracy

/ - 1

Correction method

Automatic correction

Interface

RS-232C

Measurement area (mm)

60 degrees: 9x15mm20 degree: 10X10mm /60 degree: 9x15mm / 85 degree: 5x38mm

measuring range

60 degrees: 0 - 1000 000 u20 degrees: 0 - 2000 000 U / 60 degrees: 0 - 100 000 U / 85 degrees: 0 - 60 000 u

Host size (mm)

141x72 x43

Weight (g)

Five hundred

Conforming to international standards

Comply with international standards of ISO, ASTM, DIN, JIS and BS.
