Commodity details

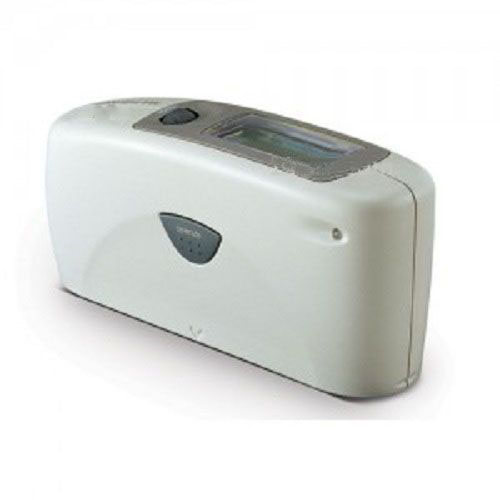

Multi Gloss MG-268A Gloss Meter
The Multi Gloss MG-268A (successor to the MG-268Plus) is a portable and compact gloss meter that complies with major international standards like ISO, ASTM, DIN and JIS. With 3 measuring angles of 85°, 60° and 20°, it can provide precise and quick gloss measurement of various surfaces from matte to high gloss finish.
Measurement (up to 999 measurements) with date and timed stamped can easily to be stored and used for statistical calculations. Using it with the gloss data software, smart-lab Gloss, professional reports with trend graphs can be generated effortlessly. The MG-268A is ideal for QC and on-site environments.
| Model | Multi Gloss MG-268A |
| Measuring geometry | 20°, 60°, 85° |
| Size of Measurement Spot |
20° : 10 × 10 mm
60° : 9 × 15 mm 85° : 5 × 38 mm |
| Standard compliance | ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67530, JISZ 8741 |
| Measurement range |
20° : 0.0 to 2,000 GU
60° : 0.0 to 1,000 GU 85° : 0.0 to 160 GU |
| Resolution |
0.0 to 99.9 GU : 0.1 GU
100 to 2,000 GU : 1 GU |
| Repeatability |
0.0 to 99.9 GU : 0.2 GU
100 to 2,000 GU : 0.2% of reading |
| Inter instrument agreement |
0.0 to 99.9 GU : 0.5 GU
100 to 2,000 GU : 0.5% of reading |
| Memory | 999 measurements with date and time |
| Difference measurement | Memory for 50 standard |
| Battery performance | Approx. 4,000 measurements (When using 1.5V AA(R6) size alkaline battery) |
| Measurement time | 0.5 seconds |
| Auto power off | 10 to 99 seconds selectable |
| Languages | English, Spanish, German, French, Italian, Japanese, Russian, Portuguese, Turkish, Polish |
| Measurement mode | Normal mode (Sample mode, Statistics, Continuous, Basic mode), Difference mode |
| Interface | USB 2.0 |
| Operating temperature/ humidity range | 15 to 40°C relative humidity 85% or less (at 35°C with no condensation) |
| Storage temperature/ humidity range | -10 to 60°C relative humidity 85% or less (at 35°C with no condensation) |
| Power | 1.5V AA(R6) size alkaline battery, or via USB port of PC |
| Size (W x H x D) | 155 × 73 × 48 mm |
| Weight | 400g |
| Display | Color LCD |
| Software | Smart-chart (smart-lab Gloss) |
