Ci60 How to repair the common faults of color difference met

Release：999 instrument maintenance network time：2019-10-29

Ci60 is an entry-level integral type spectrophotometer with a portable body, which can help to quickly detect the color difference between the sample and the standard sample. However, in the long-term use process, it may lead to various problems of ci60. Here are solutions to common faults of ci60 for you. Interested friends may wish to have a look!

I. ci6x white correction display correction error, correction failed.
1. Cleaning calibration standard

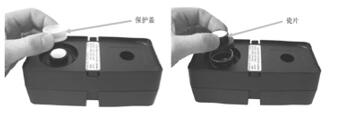

A. remove the plastic protective cover on the porcelain piece. Always hold the edge of the tile, taking care not to touch the white surface. Press the tile down and turn it anticlockwise until it can no longer be turned. Lift the tiles up and off the base.

B. clean the tiles with mild soap and warm water. Rinse thoroughly with warm water and dry with a lint free cloth. Do not use any kind of solvent or cleaning agent. After the tile is completely dry, align the large tabs on the edge of the tile with the large grooves on the base. Press the spring down through the porcelain until it can no longer be pressed down. Press and hold the tile and rotate clockwise until it can no longer rotate. Slowly let the tiles rise. When placed correctly, the arrows on the tiles should be aligned with those on the base. When the tiles are not used, reinstall the protective cover over the tiles.

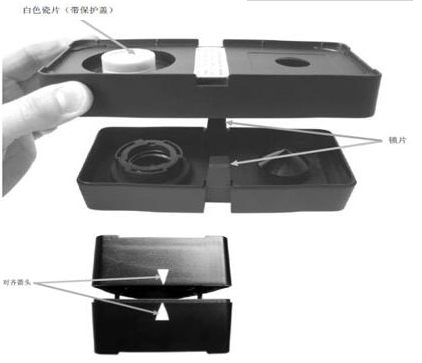

C. clean the black cylinder. Press the two locking tabs on both sides with your fingers to separate them to separate the two parts. Clean with clean, dry air or wipe off dust or dirt with a lint free cloth. After cleaning, align the two arrows at the end before reassembling the individual components.

D. after cleaning the calibration benchmark, carry out the calibration operation. If it still cannot be calibrated, carry out operation 2 (restore the factory settings).
II. Ci64 can not be corrected after switching aperture

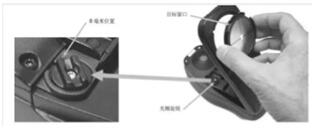

To ensure the accuracy of aperture switching, ci64 needs to rotate the bottom knob first and then replace the target window when switching the size and aperture.

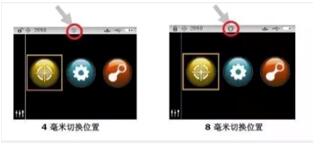

In addition, note that after switching, the display on the screen is different, and then correct.

III. After completion of netprofiler and success of ci64, unconfigured or invalid configuration will be displayed.
After completing netprofiler with ci64 8mm aperture, when switching to 4mm, netprofiler needs to be done again for 4mm aperture. 4mm and 8mm aperture have their own profile files.
IV. ci6x fails to start
First, make sure that the instrument is powered on or connected to the wall power supply. If it still cannot be powered on, perform the factory reset and firmware update in the first article. After the update, it still cannot be started. Please contact oldmeters.com.
V. ci6x screen crashes

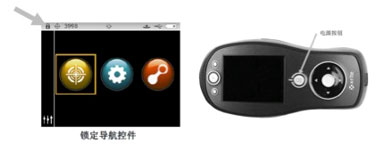

First check whether the instrument is locked. If it is locked, press the power button to unlock it. If the screen still cannot be controlled, restart the instrument and try again. If the problem still exists, perform the factory reset and firmware update in the first article. If the problem still exists after the update, please contact oldmeters.com.

Vi. crocodile prompt after instrument calibration
At this time, the intensity of the light source becomes weak and can still be measured, but it is better to replace the light source as soon as possible. The replacement of light source can be contacted with oldmeters.com and cannot be replaced by itself.
