How to solve the problem of aperture switching between ci6x

Release：999 instrument maintenance network time：2019-10-29

Some users have reported that when using ci64, there is a problem that can't be corrected, which may be caused by the problem of aperture switching, so how to solve it? The following is a brief introduction of ci6x and exac aperture switching methods.

Ci6x can not correct the cause analysis:

Some time ago, users reported that ci64 indicated that it could not be calibrated when using small aperture measurement and calibration, but they learned through communication that the instrument was just purchased, and after simple communication that the customer did not switch the aperture. Here's an

The two points of this model of aceri ci64 machine are its high measurement accuracy and its hardware can switch aperture. For aperture problems, users can view《Maintenance methods for common faults of ci6x series colorimeter》，There are detailed answers。

Precautions for ci6x switching aperture:

When switching aperture in ci64, the following two actions need to be noted:

1. Be sure to change the hole diameter knob. For example, 8mm hole diameter (corresponding to large circle point). If you want to switch to 4mm small hole diameter, turn the knob here to the small circle point position!

Ci6x和eXac孔径切换

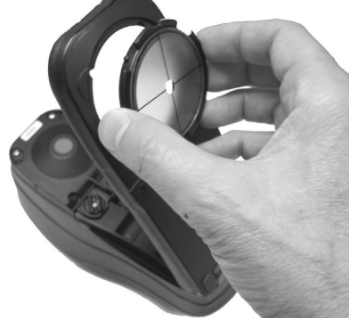

2. Replace the target window! The target window is as follows: the small round hole is 4mm, and the large round hole is 8mm.

Ci6x和eXac孔径切换

For another instrument, the aperture cannot be switched. The aperture of exact has 4 apertures, i.e. 1.5mm = 2mm, 4mm, 6mm. The default aperture of the device is 2mm. If it needs to be replaced, it needs to contact the maintenance center or authorized maintenance center, because in addition to the target window needs to be replaced, the internal aperture plate and main board information need to be replaced.
