Maintenance method of cm2300d spectrophotometer

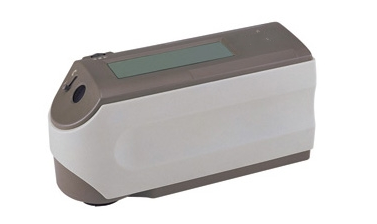

Cm2300d spectrophotometer is a portable product launched by Japan, which can easily detect the appearance color of paint, plastic and other products. However, in the long-term use process, components may be aging, unable to correct and other problems.
See fault analysis for cm2300d calibration:
The faults corresponding to the error code of cm2300d spectrophotometer are as follows:
Ok02: too low light intensity
Ok10: please make whiteboard correction
Er01: memory full
Er02: low battery
Er05: Flash error
Er07: parts corrected to complete
ER11: correction error
Abnormal treatment method of cm2300d spectrophotometer:
1. Abnormal measurement results
Is the instrument in good contact with the sample? Make sure that the instrument is in good contact with the sample so as to avoid light leakage
Does the calibration whiteboard match the instrument? Is whiteboard correction complete? Correct the whiteboard with the correct whiteboard
Is the zero correction complete? Directly align the color measuring hole with the air or use the black correction cylinder for zero point correction
2. The deviation of measurement results is large
Does the instrument move during measurement? The instrument must be fixed when measuring.
3. No data is transmitted to the computer, no command is received from the computer, and no command is received correctly.
Is the RS-232C communication line connected correctly? Is the RS-232C communication line dedicated to the machine? Connect the instrument and computer with RS-232C communication line.
Is the communication parameter setting of the instrument consistent with that of the computer? Set the communication parameters of the instrument to be consistent with those of the computer.
4. Invalid task function
Is task mode downloaded? It can be downloaded through the optional color quality control software spectramagic
5. Unable to print
Is the printer communication line connected correctly? The instrument must be connected to the printer through the printer communication line
Cm2300d spectrophotometer maintenance steps:
If the user can not solve the abnormal condition of cm2300d spectrophotometer by himself according to the above methods, he needs to contact a professional manufacturer for maintenance. oldmeters.com is an instrument maintenance voucher subordinate to Shenzhen sanenchi Technology Co., Ltd. It can provide users with instrument maintenance services of 3nh, Tilo, Ashley, Japan, BYK, hunterlab, Datacolor and other brands. Users can enjoy convenient color difference instrument maintenance services by operating according to oldmeters.com maintenance process.
