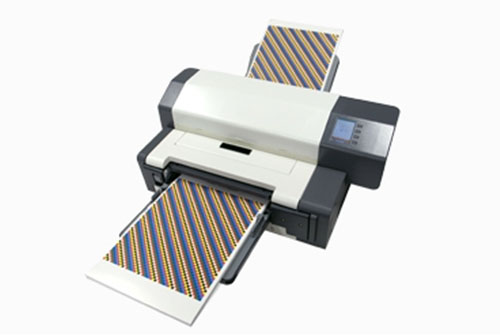

FD-9 Auto Scan Spectrophotometer
The key to success for the modern professional print business is automation and accuracy. The Japan FD-9 Autoscan Spectrophotometer is the ideal tool for print color management, combining speed, accuracy, ease-of-use and versatility.
The FD-9 reads 1,500 patches in just 4 minutes and within one single scan users obtain data for M0, M1 and M2, conforming to ISO13655:2009 and offering improved certainty of colors and OBA. The FD-9 uses a free-format-function enabling it to measure virtually every chart that might be used to calibrate printers and create profiles. Making it even easier to use is it has a full color LCD screen which provides enhanced user operation. It also features both USB and Ethernet connectivity enabling you to easily share one FD-9 between multiple machines. With the unique integrated image scanner, it enables automatic chart alignment and can read QR codes for fully automated sheet and chart identification. Similar to the groundbreaking FD-7, the FD-9 features built-in wavelength calibration and temperature drift compensation, maximizing day to day accuracy and reliability. FD-9 also includes FD-S2w measurement utility software as a standard accessory. The software enables easy measurement of color charts with or without definition file.
The optional automatic sheet feeder enables continuous measurement which is perfect for users who have to measure dozens of sheets every day. The automatic sheet feeder enables up to 100 sheets to be pre-loaded and measured with minimal user input. Combined with the QR code reader function, the measurement results can be automatically linked to the printed sheet.
| Model | Autoscan Spectrophotometer FD-9 |
|---|---|
| Illumination/viewing system |
45°a: 0° (annular illumination) *1> Conforms to CIE No. 15, ISO 7724/1, DIN 5033 Teil 7, ASTM E 1164, and JIS Z 8722 Condition a for reflectance measurements |
| Spectral separation device | Concave grating |
| Wavelength range | 380 nm to 730 nm |
| Wavelength pitch | 10 nm |
| Half bandwidth | Approx. 10 nm |
| Measurement area | Approx Φ3 mm |
| Light source | LED |
| Measurement range | Reflectance: 0 to 150% |
| Short-term repeatability |
Within σΔE00 0.05 (When white plate is measured 30 times at 10-second intervals after white calibration has been performed) |
| Inter-instrument agreement | Within Delta;E00 0.3 (Average of 12 BCRA Series II color tiles compared to values measured with a master body under Japan standard conditions) |
| Measurement time |
Approx 4 min./1,500 patch (Under Japan measurement condition*3) |
| Output data | Spectral reflectance data |
| Measurement conditions*2 | Corresponding to ISO 13655 Measurement Conditions M0 (CIE Illuminant A), M1 (CIE Illuminant D50), and M2 (illumination with UV-cut filter); User-defined illuminant |
| Sample backing | Corresponding to ISO 13655 Standard white backing |
| Interface | USB2.0, 100Base-TX |
| Power | Included AC adapter: Input: AC 100 to 240V 50-60Hz; Output: DC 24V 5A |
|
Dimensions (W x D x H) |
716x251x159mm(Body only) 601x1158x245mm(Auto sheet feeder only) |
| Weight | 10.5kg(Body only) |
| Operating temperature/ humidity range | 10 to 35°C, 30 to 85% relative humidity with no condensation |
| Storage temperature/humidity range | 0 to 45°C, 0 to 85% relative humidity with no condensation |
| Standard accessories | AC adapter,USB cable,Measurement Utility software FD-S2w |
| Optional accessory | Auto sheet feeder |
| Measurment chart conditions | |
|---|---|
| Paper width | 45 to 330mm |
| Paper length | 170 to 1500mm |
| Paper thickness | 0.05 to 0.45mm |
| Patch size | 6x6mm or larger |
| Maximum number of patches |
1394 (A4) 2928 (A3) |
| Margins (minimum) | Leading: 23mm; Trailing: 33mm; Left/right sides: 4 mm each |
|
Specifications are subject to change without notice. *1 Illumination for wavelengths under 400nm is unidirectional. *2 M0,M1, and M2 are measurement conditions described in “4.2.2 Illumination requirement and measurement conditions” in ISO 13655. *3 Paper size : A3 , patch size : 6mm x 6mm, patch arrangement : 32 rows x 47 columns *4 Even if paper size is within the ranges specified, some charts may not be measured | |
| Main specifications of the Software FD-S2w | ||
|---|---|---|
| Operating Environment | OS | Windows7 /Windows8.1 / Windows10 / MacO X 10.9 10.10 |
| CPU | 1 GHz or higher | |
| Memory | 2 GB or more (64-bit OS) | |
| Hard disk | 8GB recommended | |
| Display | Display unit capable showing at least 1024 x 768 dots | |
| Interface | USB2.0, 100Base-TX | |
| Compatible instruments | FD-9 / FD-7 / CL-500A (Only reading of user-defined illuminant data for FD-7 and CL-500) | |
| Major functions | Create chart ; Measurement of chart ; Display Measurement values ; Export Measurement data file ; Create QR code | |
| Measurement values | Spectral reflectance data, colorimetric values | |
| Measurement conditions | Corresponding to ISO 13655 Measurement Conditions M0 (CIE Illuminant A), M1 (CIE Illuminant D50), and M2 (illumination with UV-cut filter); User-defined illuminant | |
| Illuminants | A, C, D50, D65, ID50, ID65, F2, F6, F7, F8, F9, F10, F11, F12, A+UV cut, User-defined illuminant | |
| Observers | 2° Standard Observer, 10° Standard Observer | |
| Color spaces | L*a*b*, L*C*h, XYZ | |
| Display languages | English, German, French, Spanish, Japanese, Chinese (Simplified) | |
| Exported data format | CxF3: ISO17972-1:2015 ; CGATS: ISO28178:2009 (ANSI CGATS-17) ; FD-S2w Original Format (csv/tsv) | |
