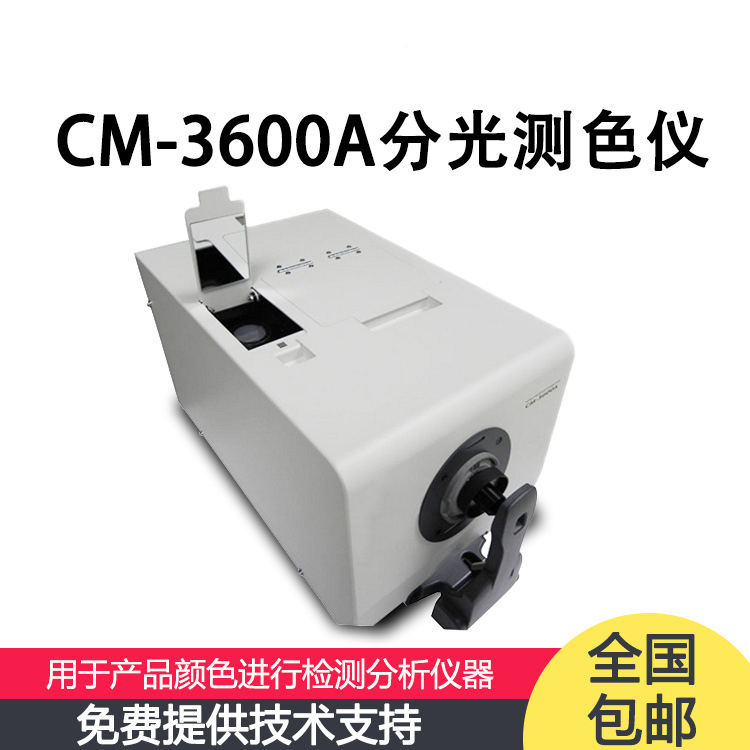

CM-3600A Spectrophotometer
Japan designed the CM-3600A spectrophotometer with high-precision capabilities and great reliability. Its versatility and ease of use makes it a good choice in many measuring applications. Because it’s so easy to operate, it’s consistently among the most sought after benchtop spectrophotometers on the market.
The CM-3600A spectrophotometer is a compact yet advanced instrument that features a side port in horizontal format and was built to measure a wide variety of objects’ reflectance. It also measures the transmittance of translucent or transparent liquids and solids – all this while taking up a minimum amount of space.
| Model | CM-3600A |
|---|---|
| Illumination / observation system |
Reflectance; di:8°, de:8° (diffused illumination, 8-degree viewing), equipped with simultaneous measurement of SCI (specular component included) / SCE (specular component excluded); Conforms to CIE No.15, lSO7724/1, ASTM E-1164, DIN 5033 Teil7 and JIS Z8722 condition C standard. Transmittance : di:0°, de:0° (diffused illumination, 0-degree viewing); Conforms to CIE No.15, ASTM E-1164 and DIN 5033 Teil7 standard. |
| Light-receiving element | Silicon photodiode array (dual 40 elements) |
| Spectral separation device | Diffraction grating |
| Wavelength range | 360nm to 740nm |
| Wavelength pitch | 10 nm |
| Half bandwidth | Approx. 10nm |
| Reflectance range | 0 to 175%, resolution: 0.01% |
| Sphere size | Ø152 mm |
| Light source | 2 pulsed xenon lamps |
| Minimum interval between measurements | Normal SCI/ SCE measurement: 4 sec. UV-cut / UV-adjusted measurement: 5 sec. Transmittance measurement: 3 sec. |
| Measurement/illumination area |
Reflectance: Changeable between LAV, MAV, and SAV LAV: Ø25.4 mm / Ø30 mm MAV: Ø8 mm / Ø11 mm SAV: Ø4 mm / Ø7 mm Transmittance: Approx. Ø24 mm |
| Repeatability |
When white calibration plate is measured 30 times at 10-sec. intervals after white calibration has been performed: Spectral reflectance: Standard deviation within 0.1% Colorimetric values: Standard deviation within ΔE*ab 0.02 |
| Inter-Instrument Agreement | Mean ΔE*ab 0.15 (LAV/SCI) Average for 12 BCRA Series II color tiles compared to values measured with master body |
| UV adjustment | Instantaneous numerical adjustment |
| UV cut filters | 400 nm cutoff and 420 nm cutoff |
| Transmittance chamber |
Width: 133 mm, Depth: Approx. 50 mm; Measurement diameter: Approx. 17 mm Transmission sample holder (optional accessory): Sample holder for both plate-shaped and liquid samples (removable); Liquid samples not measurable with CM-3610A. |
| Interface | USB 1.1 |
| Power | AC 100 to 240V 50/60Hz (using included AC adapter) |
| Operating temperature / humidity range (*1) | 13 to 33°C, relative humidity 80% or less (at 35°C) with no condensation |
| Storage temperature/humidity range | 0 to 40°C, relative humidity 80% or less (at 35°C) with no condensation |
| Size (W×H×D) |
CM-3600A: 244 × 205 × 378 mm CM-3610A: 300 × 597 × 315 mm |
| Weight |
CM-3600A: 11.5 kg CM-3610A: 16.5 kg |
| Standard accessories | CM-3600A: White Calibration Plate, Target Mask (Ø4 mm), Target Mask (Ø8 mm), Target Mask (Ø25.4 mm), Zero Calibration Box, AC Adapter, Dust Cover, Accessory Case, USB Cable (3 m) CM-3610A: White Calibration Plate, Target Mask (Ø4 mm), Target Mask (Ø8 mm), Target Mask (Ø25.4 mm), Zero Calibration Box, AC Adapter, Dust Cover, Accessory Case, USB Cable (3 m) |
| Optional Accessories |
CM-3600A: Color Data Software SpectraMagic™ NX, Transmittance Specimen Holder, Cell (2mm)/(10mm)/(20mm), Plastic Cell (2mm)/(10mm)/(20mm), Transmittance Zero Calibration Plate, USB Cable (5 m) CM-3610A: Color Data Software SpectraMagic™ NX, Transmittance Specimen Holder, Transmittance Zero Calibration Plate, Opacity Jig, USB Cable (5m) |
