second-handSP60

X-Rite SP series spectrometer Model: SP60 SP62 SP64 Origin: United States (original imported) The SP series spectrometer is specially designed by the Xrite company of the United States, and is professionally sold by Tian Yu Li company and is an economical

Commodity details

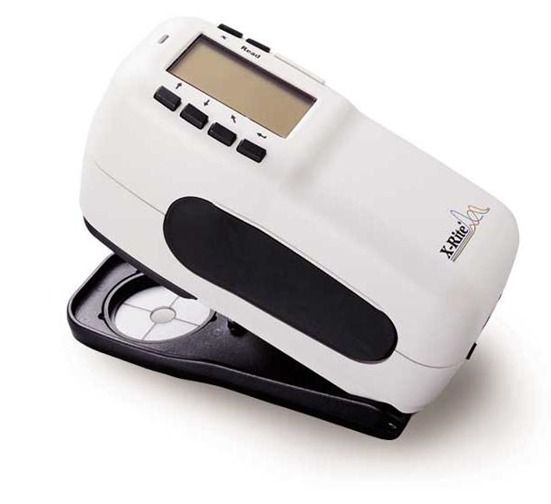

X-Rite SP series spectrometer

Model: SP60 SP62 SP64

Origin: United States (original imported)

The SP series spectrometer is specially designed by the Xrite company of the United States, and is professionally sold by Tian Yu Li company and is an economical and portable portable spectrometer suitable for color management in laboratory and field.

It can be used in various working situations such as color detection, color recognition, etc.



Characteristic

SP spectrometer design is lightweight and durable.

The light source uses the pulse type inflatable tungsten lamp, and the D/8 integrating sphere design ensures the accuracy and reproducibility of the measurement results.

The integrating sphere is carved from Spectrolon material.

Spectrolon is a non coated durable high reflective material.

It will not corrode, peel or yellowing with time, thus avoiding the time and cost of re coating.

At the same time, a better accuracy of reflection measurement data is ensured.

The measuring aperture of 8mm can meet the measurement requirements of different sizes of samples.

The flexible location target window can accurately locate the measuring position.

It is powered by rechargeable batteries to facilitate outdoor use.

The structure of the SP spectrometer is ergonomically designed and easy to use.

Large screen LCD display, data access is easier.

The wrist strap is designed with a hand-held fuselage to ensure comfort and accuracy in use.

The fuselage is light and strong and durable.

SP Series technical specifications




SP60
SP62
SP64
Measurement geometry:
D/8
D/8
D/8
Optional measuring aperture:
8mm measurement of /12mm lighting
4mm measurement of /6.5mm lighting
8mm measurement of /13mm lighting
14mm measurement of /20mm lighting
4mm measurement of /6.5mm lighting
8mm measurement of /13mm lighting
14mm measurement of /20mm lighting
Detector:
Silicon photodiode (blue light enhancement)
Silicon photodiode (blue light enhancement)
Silicon photodiode (blue light enhancement)
Color measuring light source:
Pulse tungsten lamp
Pulse tungsten lamp
Pulse tungsten lamp
Spectral range:
4 000 - 70 40 nm
4 000 - 70 40 nm
4 000 - 70 40 nm
measuring range
0 to 200% reflectivity
0 to 200% reflectivity
0 to 200% reflectivity
Spectral wavelength spacing:
10nm
10nm
10nm
Instrument platform difference:
Less than 0.40 E / AB
Less than 0.20 E / AB
Less than 0.13 E / AB
Storage
1024 criteria (including tolerance)
2000 samples
1024 criteria (including tolerance)
2000 samples
1024 criteria (including tolerance)
2000 samples
Short term reproducibility:
0.10 the average value of delta E * AB is to measure white standard board.
0.05 the average value of delta E * AB is to measure white standard board.
0.05 the average value of delta E * AB is to measure white standard board.
Weight:
2.4 pounds (1.1 kilograms)
2.4 pounds (1.1 kilograms)
2.4 pounds (1.1 kilograms)
Size:
4.3 x 3.3 x 7.7 inches.
(10.9 x 8.4 x 19.6 cm)
4.3 x 3.3 x 7.7 inches.
(10.9 x 8.4 x 19.6 cm)
4.3 x 3.3 x 7.7 inches.
(10.9 x 8.4 x 19.6 cm)
Power Supply:
Rechargeable rechargeable battery
7.2VDC@1450mAh
Rechargeable rechargeable battery
7.2VDC@1450mAh
Rechargeable rechargeable battery
7.2VDC@1450mAh
Lamp life
About 500000 measurements
About 500000 measurements
About 500000 measurements
Charging time
About 4 hours to 100% electricity.
About 4 hours to 100% electricity.
About 4 hours to 100% electricity.
Measurable times per charge
It can be measured 1000 times in 8 hours.
It can be measured 1000 times in 8 hours.
It can be measured 1000 times in 8 hours.
Operating temperature range
10-40, 85% relative humidity (no dew).
10-40, 85% relative humidity (no dew).
10-40, 85% relative humidity (no dew).
data interface

Patent bidirectional RS232 interface
Baud rate 300-57600
Patent bidirectional RS232 interface
Baud rate 300-57600

The standard accessories of SP spectrometer include

A white correction plate, a reflective black correction board, a power line transformer, various language operating instructions, wrist sling suitcase.
