second-handSpectrophotometer CM-512M3A
The CM-512m3A spectrophotometer is a handheld, multi-angle device that works ideally with metallic colors.
- payment：
- WeChat payment Bank card Alipay
Commodity details

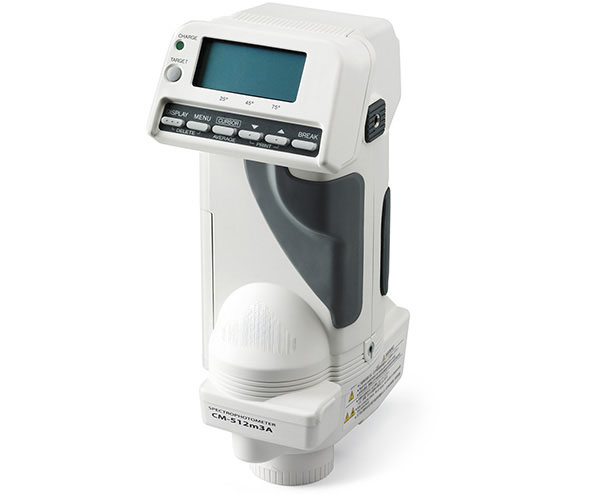

CM-512m3A Spectrophotometer (spectral type, multi-angle)
The Japan CM-512m3A Spectrophotometer is a multi-angle spectrophotometer that was created for use with metallic paints. The device has 0° viewing and illumination angles at 25°, 45°, and 75° that work with an exclusive geometry.
The device’s unique geometry offers an orientation error free symmetry that is often found lacking in other multi-angle devices. This device’s illumination provides impressively accurate results on both traditional and curved surfaces making formerly difficult samples such as door handles and vehicle mirror bodies easily measurable. The lack of moving parts means the handheld CM-512m3A Spectrophotometer is very hearty and rugged.
| Model | CM-512m3A |
|---|---|
| Illumination/viewing system | 3-angle circumferential illumination (25°, 45°, and 75°)/0° viewing angle |
| Wavelength range | 400 to 700 nm |
| Wavelength pitch | 20 nm |
| Photometric range | 25°: 0 to 300% reflectance; 45°, 75°: 0 to 200% reflectance; Resolution: 0.01% |
| Light source | Pulsed xenon arc lamp |
| Minimum measurement interval | 3 seconds (when measuring a white calibration plate at 23°C) |
| Battery life | Alkaline manganese batteries: Approx. 400 measurements at 10 sec. intervals (when dark color is measured) |
| Measurement/illumination area | Ø12mm/ Ø20mm |
| Repeatability |
• Spectral reflectance: Standard deviation within 0.30% • Colorimetric values: Standard deviation ΔE*ab within 0.05 • (Measurement conditions: White calibration plate measured 30 times at 10s intervals) |
| Interface | RS-232C Terminal; D-sub 9-pin (female) |
| Display | Dot-matrix reflective LCD with 26 characters x 7 lines (240 x 96 dots) with adjustable contrast |
| Display data |
• Colorimetric data: L*a*b*, L*C*h • Color difference data: Δ(L*a*b*), Δ(L*C*H*), ΔE*ab, CMC(l:c), ΔE00(CIE DE2000) • Other data display: FF value, line graph |
| Illuminant/ Observer condition |
• Light source: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 • Observer: CIE 2° and 10° |
| Operating temperature/humidity range | 0 – 40°C; relative humidity 85% or less (at 35°C) with no condensation |
| Storage temperature/humidity range | -20 – 45°C; relative humidity 85% or less (at 35°C) with no condensation |
| Power | Four AA-size batteries or special AC adapter |
| Dimensions (W × H × D) | 115 × 257 × 164mm |
| Weight | Approx.1.4 kg (without batteries) |
