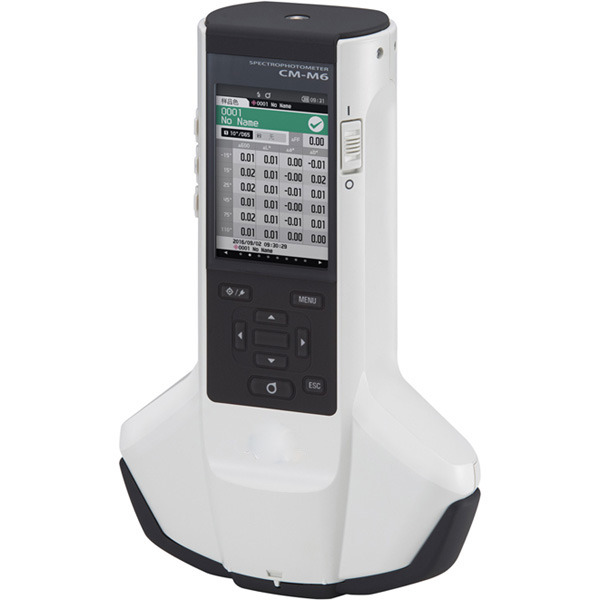

Spectrophotometer CM-M6
The Japan Multi-Angle Spectrophotometer CM-M6 is specifically designed to provide fast and precise color evaluation of measurement of metallic and pearlescent paints on automotive exteriors. Utilizing its patented double-path illumination system with 45° illumination and 6 aspecular viewing angles (-15°/15°/25°/45°/75°/110°) as described in ASTM E2194 or DIN 5033-7 from two sides, it provides stable and accurate results even on curved surfaces (R=300 radius).
The CM-M6 comes with high resolution back-illuminated color display that is easy to read under low ambient lighting condition. With a new ergonomic designed for easy handling and positioning, the CM-M6 is ideal for repeated use over long periods of time on the production line.
| Model | CM-M6 |
|---|---|
| Illumination/viewing system | 45° illumination: -15° / 15° / 25° / 45° / 75° / 110° aspecular viewing angles with double-path technology |
| Detector | Dual 40-element silicon photodiode arrays |
| Spectral separation device | Linear variable filter |
| Wavelength range | 400 to 700 nm |
| Wavelength pitch | 10 nm |
| Photometric range | 0 to 600 %; Output/display resolution: 0.01% |
| Light source | High-CRI white LED |
| Measurement time | Approx. 4.5 s; Minimum measurement interval: Approx. 5 s |
| Battery performance | Approx. 1500 measurement at 10-sec. intervals from fully charged battery |
| Measurement/illumination area | Ø 6 mm / Ø 12 mm |
| Repeatability |
Colorimetric value: Standard deviation within ΔE*ab 0.05
(when a white calibration plate is measured 30 times at 10-second intervals after white calibration) |
| Inter-Instrument Agreement |
Within ΔE*ab 0.2
(Averaged for 12 BCRA Series II tiles compared to values measured with a master body at 23℃) |
| Interface | USB2.0; Bluetooth®: optional |
| Display | 3.5-inch TFT Color LCD |
| Display data |
Colorimetric data: L*a*b*, L*C*h Color difference data: Δ(L*a*b*), Δ(L*C*H*), ΔE*ab, CMC(l:c), ΔE94 (CIE1994), ΔE00(CIE DE2000), DIN6175-2 Other data display: MI, FF value, line graph, pass/fail judgement |
| Observer condition | 2° and 10° colorimetric standard observer |
| Illuminant condition |
A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12
(simultaneous evaluation with two light sources possible) |
| Display languages | English, German, French, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Chinese (simplified), Japanese |
| Operating temperature/humidity range | 0 – 40°C; relative humidity 85% or less (at 35°C) with no condensation |
| Storage temperature/humidity range | -20 – 45°C; relative humidity 85% or less (at 35°C) with no condensation |
| Power | Removable Lithium-ion rechargeable battery or AC Adapter |
| Dimensions (W × H × D) | Approx. 152 × 239 × 81 mm |
| Weight | Approx. 1.1 kg (including battery) |
| Standard accessories | White calibration plate, USB cable, AC adapter, Lithium-Ion battery pack, Zero Calibration Box |
| Optional Accessories |
Charging stand for spare batteries; spare battery packs, Bluetooth® module
SpectraMagic™DX (software) |
