Product information of portable spectrophotometer
Cm-2300d portable spectrophotometer is a portable integrating sphere portable spectrophotometer. Its multi-functional performance is used in various practical applications.
·Portable, compact, lightweight and stylish body 670 g (excluding batteries)
·Store up to 1700 data
·The measurement interval of the high-precision sensor is up to 10nm, which has the advantage of repeatability.
·Compatible with the data of cm-2600d portable spectrophotometer and cm-2500d
Main use of portable spectrophotometer
It is ideal for the color control of electronic products such as plastic and resin, vehicle painting, textiles, leather products, etc. Color measurement solutions for food industry
Main features of portable spectrophotometer
It can be measured at any position.
The use of the xenon lamp allows the instrument to be placed anywhere on the surface of the sample.
High precision measurement object.
The portable and fashionable body is equipped with a lighted visiting mirror.
The portable and fashionable fuselage with illuminated sight glass enables users to quickly and accurately place the instrument on the object for positioning.
It can be used in medicine, cosmetics, printing, building materials, textiles, food and so on.
Both SCI (including specular) and SCE (excluding specular) are measured.
In only 1.5 seconds, the data obtained by measuring SCI and SCE at the same time will be displayed on the LCD. Unlike traditional spectrometers, there is no need to switch between Sci and SCE modes. Since the measurement area does not change when the mode is switched, the work efficiency is improved and stable measurement data is provided. And the gloss digital display monitoring can display the relative gloss.
Can be used in plastics, paints, resins and consumer goods
*SCI is a method of measurement including specular reflection. For this reason, it reduces the influence of sample surface to a minimum, especially suitable for color quality monitoring and computer color matching.
*SCE is a measurement method to exclude specular reflection. The results of this type of measurement are similar to those of the naked eye.
Product specifications
| Model | Spectrophotometer cm2300d |
|---|---|
| Light source / observation system | D / 8 (scattering light source, 8 degree observation angle), equipped with SCI (including specular reflection component / SCE (excluding specular reflection component) synchronous measurement function. (according to CIE No.15, ISO 7724 / 1, ASTM e1164, DIN 5033 teil7, JIS z8722 condition C.) |
| Sphere size | ø52mm |
| sensor | Silicon photodiode array (double 40 elements) |
| Spectral separation equipment | diffraction grating |
| Wavelength range | 360nm reach 740nm |
| Wavelength spacing | 10nm |
| Spectral half bandwidth | about 10nm |
| Reflectivity range | 0 to 175%, display resolution: 0.01% |
| light source | 2 pulse xenon lamps |
| Measuring time | About 1.5 seconds. |
| Minimum measurement interval | 3 seconds (at 23 ° C) |
| Battery performance | About 1000 times at 10 second intervals (when using alkaline batteries) (at 23 ° C) |
| Measurement / lighting area | ø8mm/ø11mm |
| Repeatability |
Spectral reflectance: standard deviation within 0.2% (360 to 380nm: standard deviation within 0.4%)
Color: the standard deviation e * AB is within 0.08 (measure the white correction plate 30 times at the interval of 10 seconds after the white plate correction) |
| Inter device error | Δ Ε * AB is within 0.4 (SCI) (based on the average value of 12 BCRA Series II color scale, the comparison object is the value measured through the main body at 23 ° C) |
| Language mode | English / Chinese |
| Measurement mode | Single / average (automatic mode: 1 to 8 times / manual mode) |
| port | RS-232C serial port of RJ45 type interface can realize USB2.0 communication by using standard USB serial port adapter if-a24 |
| Observer | 2/10 degree |
| Light source for observation | A、C、D50、D65、F2、F6、F7、F8、F10、F11、F12（Use two light sources for synchronous calculation) |
| display | Spectral value / chart, chromaticity value, chromaticity difference value, "pass / fail" result, relative gloss |
| Chroma space / chroma data | L*a*b*、L*C*h、Yxy、XYZ、MI、 E*ab、CMC (1:1)、CMC(2:1)、CIE94、CIE DE2000、WI (ASTM E313)、YI (ASTM D1925) |
| Storable data set | 1,700（Each data group consists of a pair of SCI / SCE data） |
| Acceptance and rejection judgment | Allowable rejection value of chromaticity (only one set of allowable rejection values can be set) |
| Power Supply | AA battery (× 4), AC adapter |
| Size | 69 (W) × 96 (H) × 193 (L) mm |
weight | About 670g (including "measuring table" / excluding battery) |
| Operating temperature / humidity range | 5 ° C to 40 ° C, 80% or less relative humidity (at 35 ° C), no moisture condensation |
| Storage temperature / humidity range | 0 ° C to 45 ° C, 80% or less relative humidity (at 35 ° C), no moisture condensation |
| Standard accessories |
White correction plate cm-a145, 8mm target cover cm-a146, USB serial port adapter if-a24,Power adapter AC-A305, battery 5 x 4, O 3mm target mask CM-A147 |
| Optional Accessories | Zero correction box : CM-A32 |
| Hard box CM-A148 | |
| Kit-dust cover : CM-A149 | |
| Dust cover : CM-A152 | |
| Color data software"SpectraMagic NX": CM-S100w | |
| Printer cable (D-sub 9-pin, suitable for serial port connection): CR-A75 | |
| RS-232C connecting wire IF-A16 |

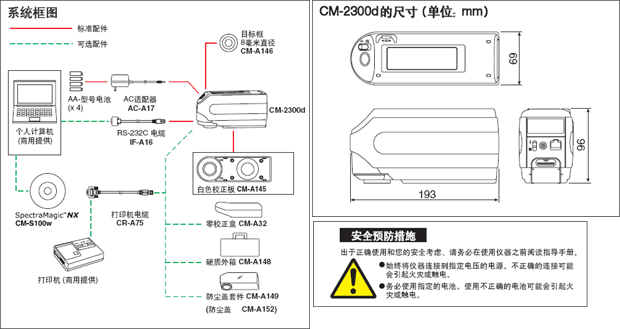

Product system diagram
