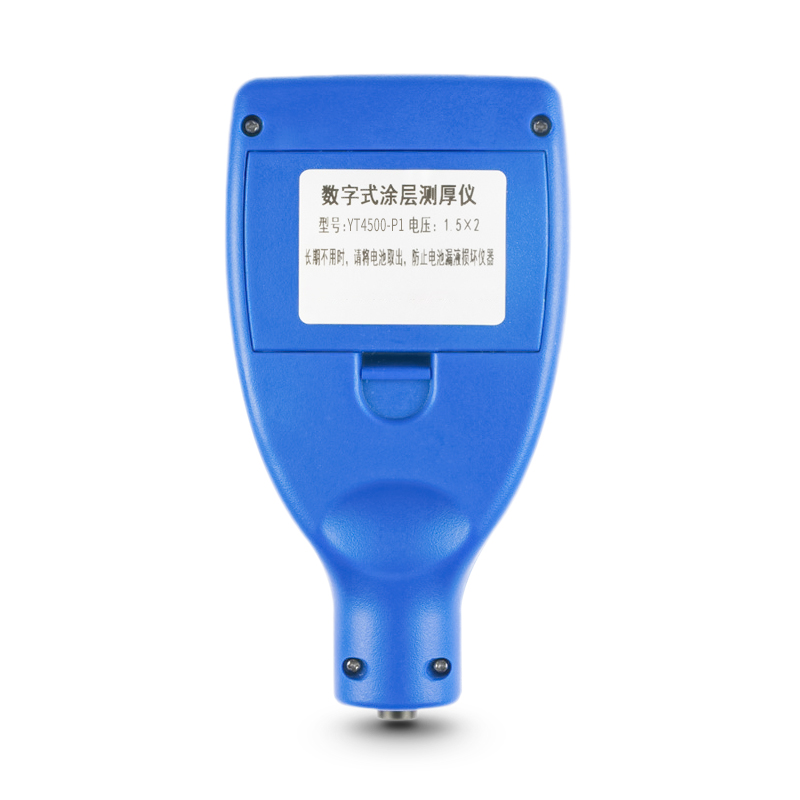

Introduction of YT4500-P1 one way dual-purpose coating thickness gauge

YT4500 is a homemade coating thickness gauge made by 3nh. It can detect all kinds of coating thickness on metal substrate quickly and accurately. The instrument is fully consistent with the magnetic and eddy current testing principles specified in ISO 2178, ISO 2360, GB/T 4956, GB/T 4957, ASTM B499 and other standards. The instrument is stable, accurate and powerful. It is widely used in the surface engineering detection area of manufacturing, metal processing and chemical industry, and is the basic equipment for coating surface treatment industry.

The Fe based probe can detect the thickness of various non magnetic coatings sprayed on various magnetic substrates, such as iron and steel, such as the paint layer, powder spraying layer, porcelain coating, chromium plating layer, copper plating layer, zinc plating layer and so on.

NFe based probe detects all the thickness of insulating coating on non-magnetic metal substrates (such as aluminum, copper, brass, stainless steel, etc.), such as paint layer, powder spraying layer and porcelain coating layer.

Features of YT4500-P1 one way dual-purpose coating thickness gauge

1., we can quickly and accurately measure the thickness of various magnetic metal matrix (magnetic method) and non-magnetic metal substrate (eddy current method) coating.

2. the single hand design is in line with the structural design of human mechanics.

3. fast and automatic identification of iron matrix and non-ferrous matrix.

4., single point calibration and multi-point calibration can be used to calibrate the instrument accurately in two ways.

5. low power consumption, more power saving, low power alarm.

6. with backlight display, buzzer prompts;

7. high wear-resistant probe, not less than 800 thousand times measurement;

8. kinds of measurement modes: single point measurement and continuous measurement;

Technical parameters of YT4500-P1 one way dual-purpose coating thickness gauge
