Product configuration

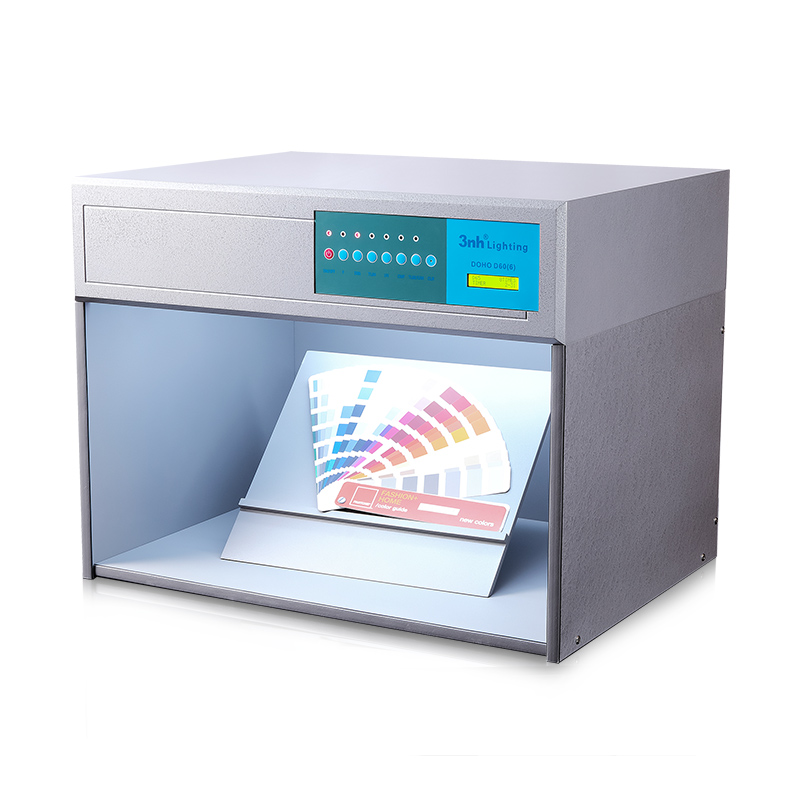

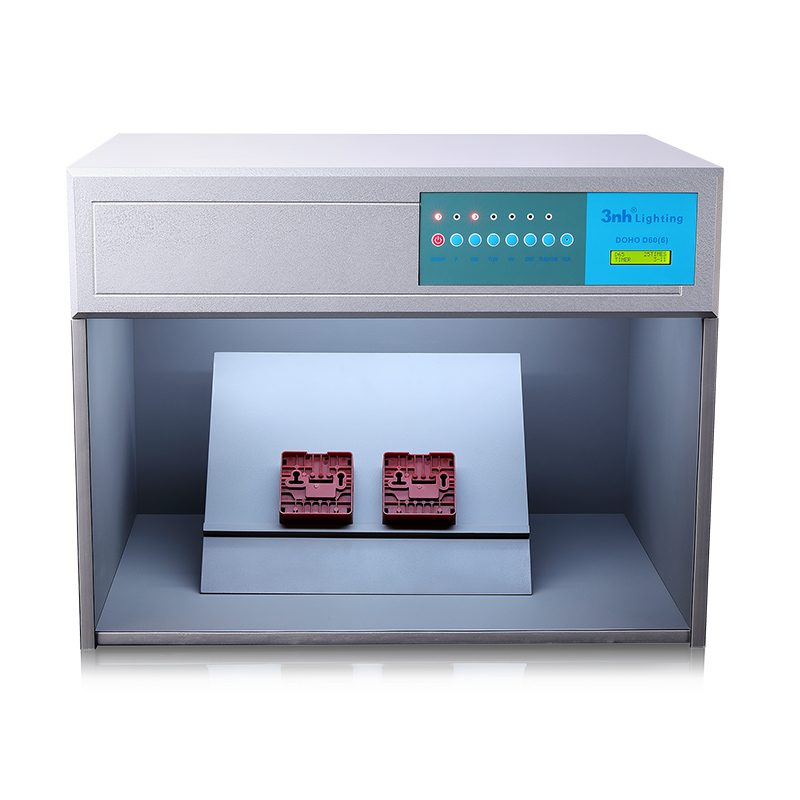

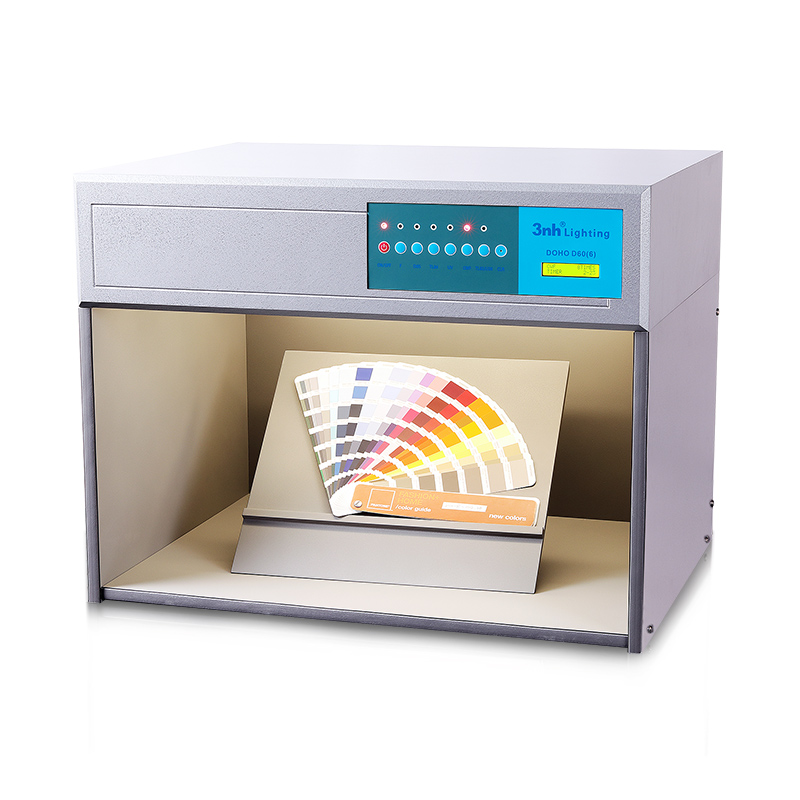

Model: D60 (6) Liu Guangyuan
Configuration: D65, TL84, CWF, F, UV, TL83 (U30) six light sources.
Volume (wide x deep x high):710x530x570 mm
Technology configuration
|
number
|
Name
|
Model
|
D65
|
TL84
|
F
|
UV
|
CWF
|
TL83
(U30)
|
Power Supply
|
|
10107
|
Standard light source
Color light box
|
D60(6)
Six light source (220V)
|
2 branches
|
2 branches
|
4
|
1 branches
|
2 branches
|
2 branches
|
220V/50Hz
|
|
10107
|
Standard light source
Color light box
|
D60(6)
Six light source (110V)
|
2 branches
|
2 branches
|
4
|
1 branches
|
2 branches
|
2 branches
|
110V/60Hz
|
Optional accessories: 45 degree standard stands.
Advantage
Displays the time, name and number of switches used for each light source.
Automatic switching of light source with the same color spectrum function.
No need to preheat, no flashing, to ensure fast and reliable color evaluation.
It has low energy consumption, no heat (no heat dissipation) and high luminous efficiency.
Configure a more complete standard for common use in British and American standards.
The name of light source can be changed, increasing the light source is more convenient.

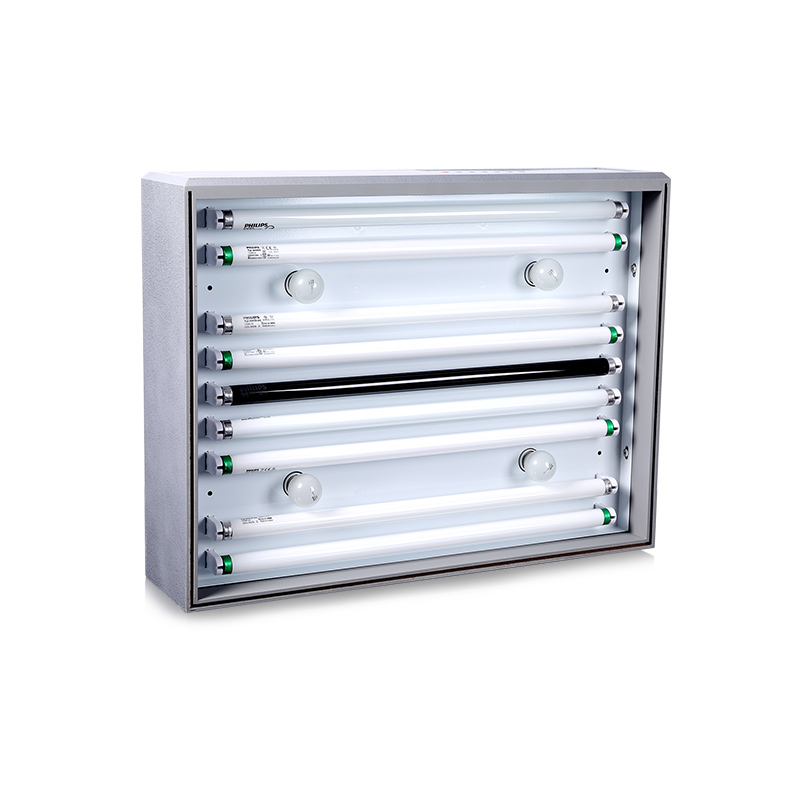

Light source explanation
D65 international standard artificial daylight
Color temperature: 6500K power: 18W
TL84 Europe, Japan and China store light source
Color temperature: 4000K power: 18W
CWF cold store Cool (White Fluorescent)
Color temperature: 4150K power: 18W
F lamp and colorimetric reference light for Hotel Familia
Color temperature: 2700K power: 40W
UV ultraviolet lamp source (Ultra-Violet)
Wavelength: 365nm power: 18W
TL83 American warm white store light source (Warm White Fluorescent)
Color temperature: 3000K power: 18W
U30 American warm white store light source (Warm White Fluorescent)
Color temperature: 3000K power: 20W
