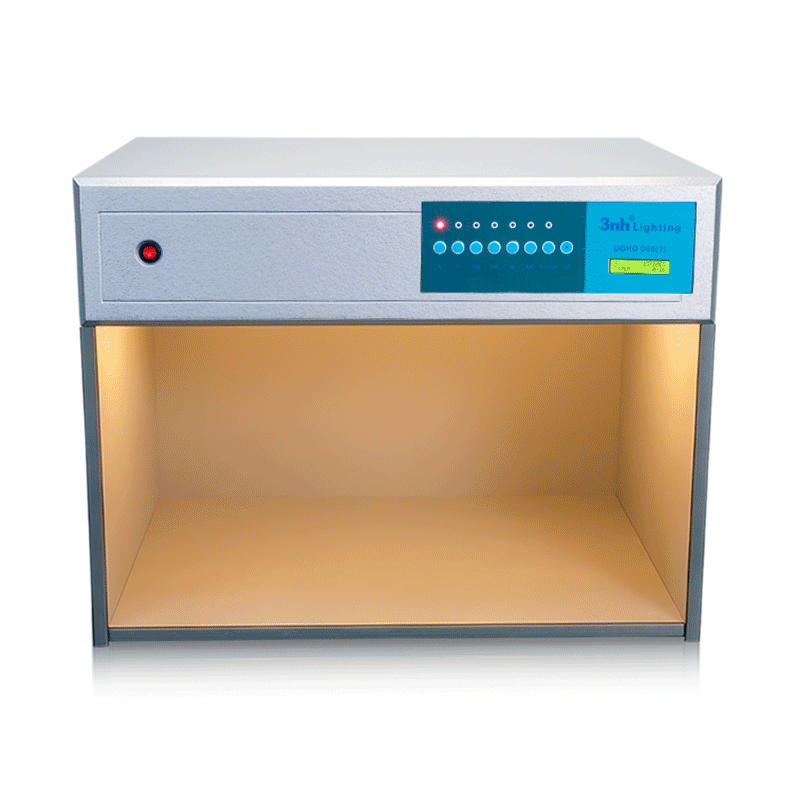

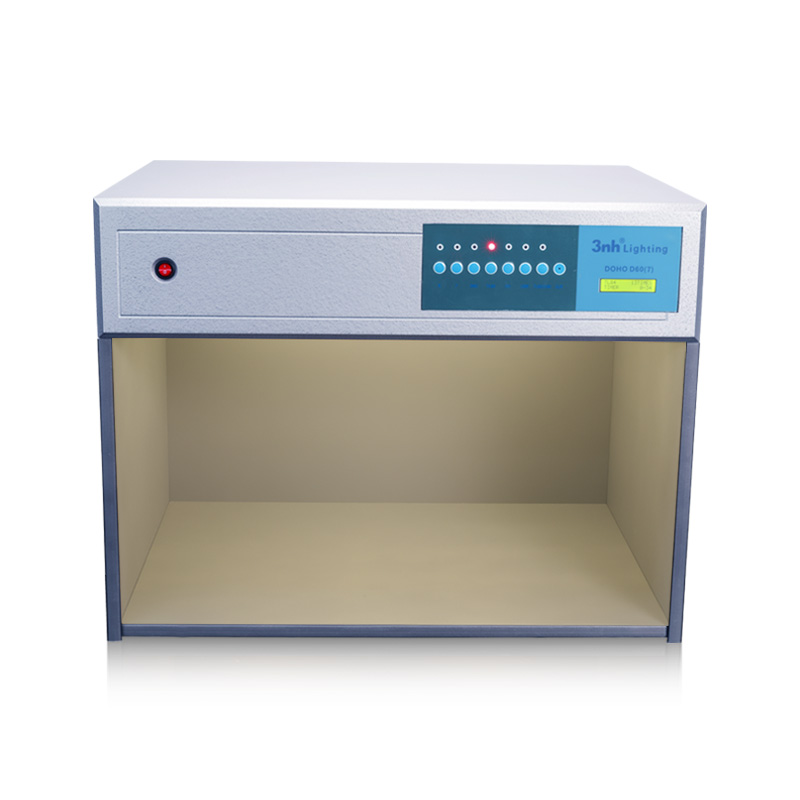

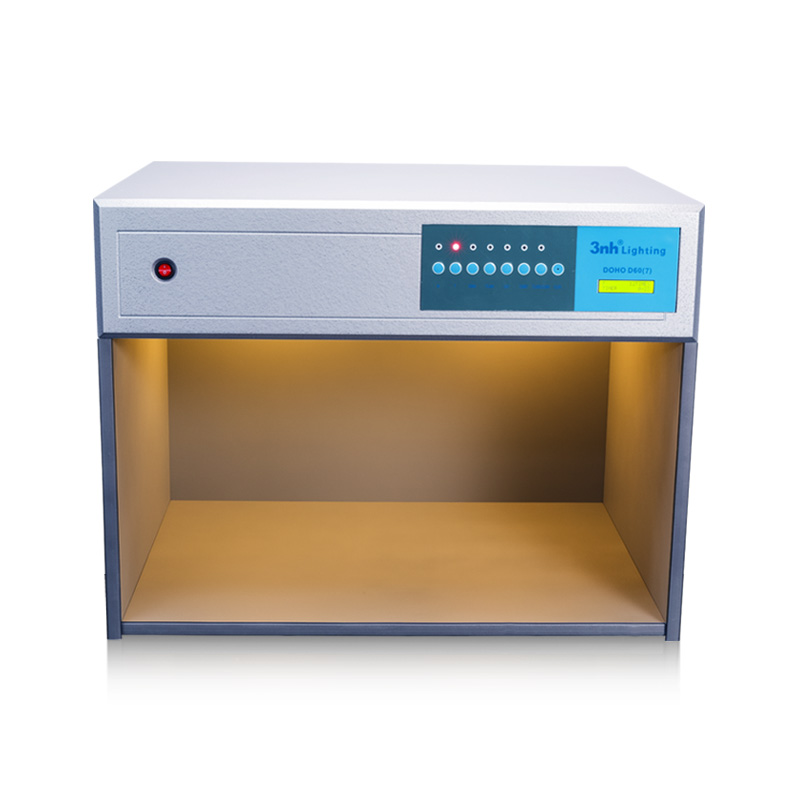

TILO Advantages of D60 (7) standard light source to color light box
Displays the time, name and number of switches used for each light source.
Automatic switching of light source with the same color spectrum function.
No need to preheat, no flashing, to ensure fast and reliable color evaluation.
It has low energy consumption, no heat (no heat dissipation) and high luminous efficiency.
Configure a set of commonly used light sources in the UK and US standard.
Contains the American Standard A light source and U30 light source.
The name of light source can be changed, and the replacement of light source is more convenient.
TILO Light source configuration of D60 (7) standard light source for color light box
|
number |
Name |
Model |
D65 |
TL84 |
CWF |
F |
UV |
A |
TL83 |
Voltage |
|
10108 |
Standard light box |
D60(7) |
2 branches |
2 branches |
2 branches |
4 |
1 branches |
2 branches |
2 branches |
220V/50Hz |
|
10808 |
Standard light box |
D60(7) |
2 branches |
2 branches |
2 branches |
4 |
1 branches |
2 branches |
2 branches |
115V/60Hz |
Optional accessories: light diffusion plate 45 degree stand stand backup lamp box.
D60 (7) standard light source for color lamp box parameters
Model: D60 (7) standard light source, color light box.
Configuration: D65, TL84, CWF, F, UV, A, TL83 seven light sources.
Weight: 38Kg
Volume (wide x deep x high):710x530x570 mm
TILO Light source of D60 (7) standard light source for color light box
D65 international standard Artificial Daylight color temperature: 6500K power: 18W
TL84 Europe, Japan and China store light source color temperature: 4000K power: 18W
CWF Cool White Fluorescent color temperature: 4150K power: 18W
F Hotel Familia lamp, colorimetric reference light color temperature: 2700K power: 40W
UV UV lamp (Ultra-Violet) wavelength: 365nm power: 20W
A American kitchen window spotlight, colorimetric reference lamp color temperature: 2856K power: 60W
TL83 European standard warm white store light source (Warm White) color temperature: 3000K power: 18W
