second-handBYK 4566

Matte finish is not only a new design trend, but also critical for applications that require a non reflective or low reflective surface - such as automotive interiors. Theres always a need for consistency in the use of a wide range of materials, from leat

Contact customer service to purchase the lease

payment：: WeChat payment Bank card Alipay

Commodity details

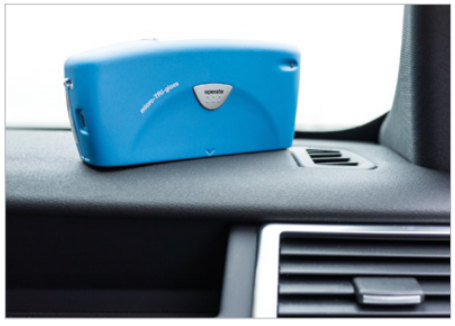

Matte finish is not only a new design trend, but also critical for applications that require a non reflective or low reflective surface - such as automotive interiors.

There's always a need for consistency in the use of a wide range of materials, from leather to plastic。

In addition, various surface structures, from large particles to pinstripes, usually show very low gloss. In order to ensure the same visual perception on different parts, a very strict tolerance range must be specified.

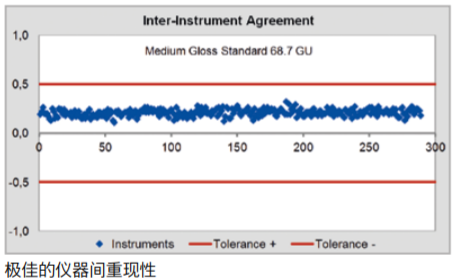

Only the extremely accurate testing instrument can control the production objectively. The new micro glossmeter s series products improve the measurement accuracy in the range of low gloss (0-20gu) at an angle of 60 °. Through the patented calibration procedure in the production process of glossmeter, excellent accuracy is guaranteed.

Model	BYK 4566
Measuring angle	20°/60°/85°
measuring range	0~10GU;10~100GU;100~2000GU
Repeatability	±0.1 GU;±0.2 GU;±0.2 %
Reproducibility	0.2GU\|0.5GU\|0.5%
Spot measurement	1010mm(20°)；915mm(60°)；5*38mm(85°)
Meet standards	ISO 2813, 7668 ASTM D 523, D 2457 DIN 67530 JIS Z8741
Outline size	1557348mm
weight	0.4kg
data interface	USB And Bluetooth Bluetooth ®Wireless technology
Spectral sensitivity	Observer for cie-c light source, conforming to CIE1931
