BYK 4569 60°-Trade-in and Recycle on oldmeters.com

second-handBYK 4569 60°

The new glossmeter s series products improve the measurement accuracy in the range of low gloss (0-20gu) at an angle of 60 . Through the patented calibration procedure in the production process of glossmeter, excellent accuracy is guaranteed. The micro gl

Contact customer service to purchase the lease

payment：: WeChat payment Bank card Alipay

Commodity details

The new glossmeter s series products improve the measurement accuracy in the range of low gloss (0-20gu) at an angle of 60 °. Through the patented calibration procedure in the production process of glossmeter, excellent accuracy is guaranteed.

The micro glossmeter XS is a small caliber 60 ° glossmeter with a measuring caliber of 2 x 4 mm. It is an ideal scheme for measuring the glossiness of small parts to ensure that it is unified with large parts.

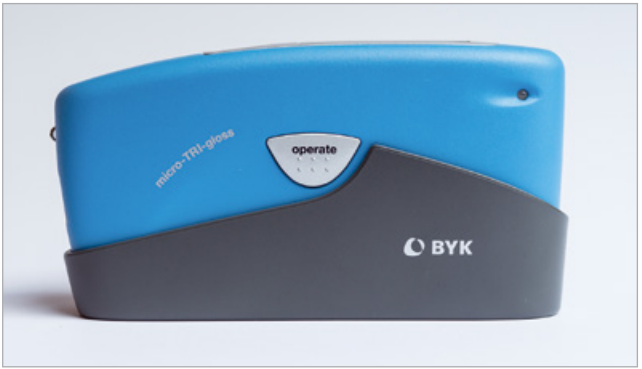

Display map

德国BYK 4569微型光泽度仪展示图

Model	BYK 4569
Measuring angle	60°
measuring range	0~2000GU
Repeatability	0-20 GU：±0.1GU；20-100 GU：±0.2GU；100-2000 GU：±0.2%
Reproducibility	0.2GU\|0.5GU\|0.5%
Measurement port size	2x4mm
Shape of measuring port	circular
Meet standards	ISO2813、ISO7668、ASTM D523、ASTM D2457、DIN 67530、JISZ8741
data interface	USB
data storage	4000 Readings
Operational language	Chinese, English, French, German, Italian, Japanese, Spanish
Outline size	155 x 73 x 48 mm
weight	0.4 kg
Power Supply	1 1.5V AA alkaline battery
Software	smart-lab Gloss Software
working temperature	15~40℃
relative humidity	Up to 85%, no condensation
Spectral sensitivity	Observer for cie-c light source, conforming to CIE1931
Measuring time	0.5 sec / angle
