second-handUG60 gloss meter
- payment：
- WeChat payment Bank card Alipay
Commodity details
What is glossiness?
Glossiness is a physical quantity to evaluate the ability of reflecting light on the surface of material under a set of geometric conditions, which has the reflective property of direction selection. We usually refer to "specular gloss", so glossmeter is sometimes called "specular glossmeter". It is mainly used to evaluate the surface color of processed products. The unit of measurement is Gu.

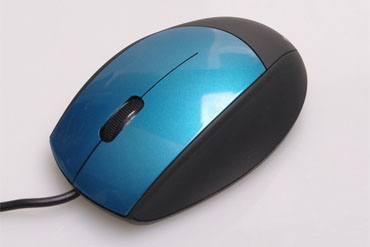

The luster of mouse coating surface

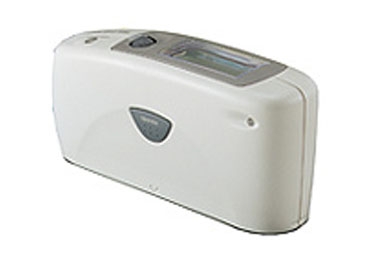

Ultra portable glossmeter
Uni gloss 60plus can only measure 60 ° angle, but it is cheaper and has all the functions and advantages of multi gloss 268plus.
Application of Japan ug60 glossmeter
Research and development of plastic products, automobile and ship spraying and porcelain
Characteristics of Japan ug60 glossmeter
Specification parameters of Japan ug60 glossmeter
| Model | UNI GLOSS 60PLUS |
|---|---|
| Measuring angle | 60° |
| Measurement area size | 60° ： 9 × 15 mm |
| Meet the standards |
ISO 2813、ISO 7668、ASTM D 523、ASTM D 2457、DIN 67 530、JIS Z 8741、 BS 3900、BS 6161(The twelfth part) |
| measuring range | 60° ： 0.0~1,000 GU |
| Precision resolution |
0 ~ 99.9 GU： 0.1 GU 100 ~ 2 000 GU： 1 GU |
| Repeatability |
0.0~99.9 GU： 0.2 GU 100~2,000 GU： Readings 0.2% |
| Inter device error |
0.0~99.9 GU：0.5 GU 100~2,000 GU： Readings 0.5% |
| Storage | 999 measurements, including date and time |
| Difference measurement mode | Store 50 standards |
| Battery performance | About 10000 measurements (when using 1.5V AA (R6) alkaline battery) |
| Measuring time | 0.5 seconds per angle |
| Shutdown | Automatic: 10-99 seconds can be selected |
| language | English, Spanish, German, French, Italian, Japanese, Portuguese and Russian |
|
Measurement mode
|
Standard mode (sample measurement mode, statistical measurement mode, continuous measurement mode and basic measurement mode) and difference measurement mode |
| Interface | USB 2.0、Bluetooth standard version 2.0 ※ |
| working temperature | 15-40 ° C, maximum relative humidity 85% (at 35 ° C), no condensation |
| Storage environment | -10-60 ° C, maximum relative humidity 85% (at 35 ° C), no condensation |
| Power Supply | 1.5 V AA(R6) 碱性电池或通过计算机的 USB 端口供电 |
| size | 155mm (W) × 73mm (H) × 48mm (d) |
| weight | 400g |
