Commodity details

First, the spectral characteristics of reflected light are measured by the spectrophotometer, and then the lab value is calculated according to the equation of CIE standard observer function In addition to displaying data in various color spaces, spectrophotometer can also display spectral data directly, providing more detailed information about the color of the object.

3nh also analyzed the parameters of imported spectrophotometer from Japan, the United States and Germany. The absolute value of lab between them was controlled within ± 1.5. The comparison of lab value between ns820 and Japanese instruments, the measurement of any color of goods, can control the gap between lab within ± 1.0, which is the breakthrough of 3nh high-tech, realizing full compatibility with the international market, a high-precision domestic spectrophotometer revolution is coming!

With the rapid development of computer technology, most of the existing colorimeter products at home and abroad use computers to complete the measurement of colorimeter, control box and a large number of data processing work, which makes the operation of colorimeter more simple and fast, the measurement accuracy of colorimeter is higher, and the result is more reliable. These automatic spectrometers can be classified in many ways according to their application requirements, technical specifications or structure. According to the common classification method, it can be divided into visual spectrophotometer with human eye as light detector and automatic spectrophotometer with physical light detector according to the difference of optical detector used.

Features of ns820 spectrophotometer：

1. Beautiful appearance and structure design in accordance with human mechanics;

2. Standard D / 8 ° (diffuse uniform illumination 8 ° receiving) conforms to CIE No.15, GB / T 3978;

3.3.5-inch capacitive touch screen pure screen design interface, friendly operation interface and extraordinary operation experience;

4. Two kinds of standard observer angles, multiple light source modes, multiple color systems, and chromaticity indexes in line with various standards to meet the needs of various customers for color measurement;

5. The repeatability is within Δ e * AB 0.04, and the difference between sets is within Δ e * AB 0.2, with stable test performance;

6. Large capacity storage space, which can store more than 10000 pieces of test data;

7. PC software has powerful function expansion;

8. High hardware configuration, integrated with a number of innovative technologies;

9. Large integrating sphere, more effective homogenization of light, making the measured data more accurate;

10.15 ° screen tilt angle, more in line with human eye observation habits.

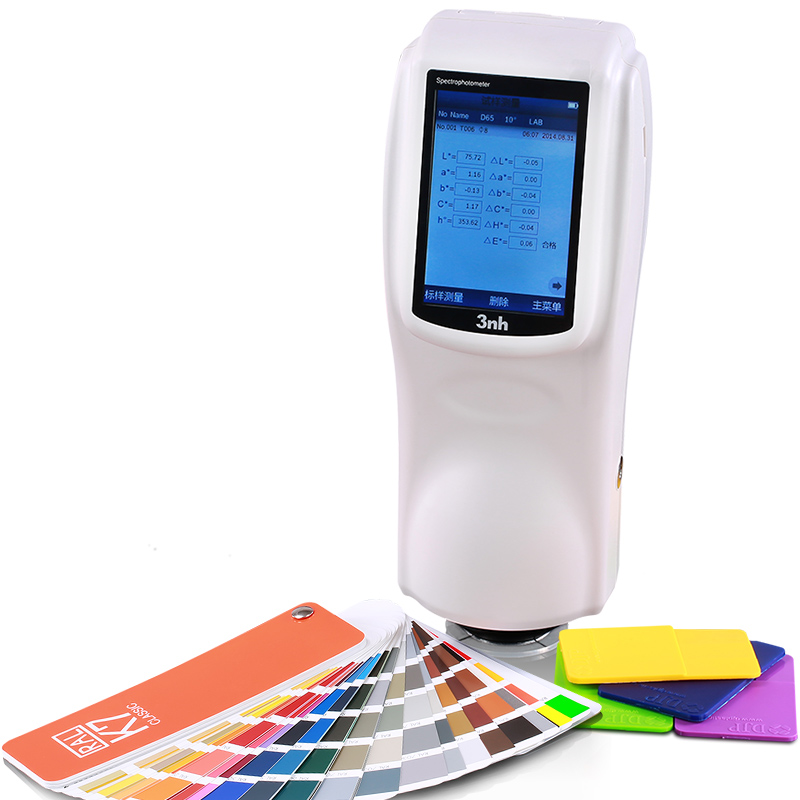

分光测色仪NS820

Technical specifications of ns820 spectrophotometer
Product model	NS820
Lighting mode	D/8°(Diffuse uniform illumination 8 ° receiving); Meet the standards CIE No.15，GB/T 3978.
Integrating sphere size	Φ58mm
Lighting source	Combined LED light source
A sensor	Silicon photodiode
Measurement wavelength range	400~700nm
Wavelength interval	10nm
Reflectance measurement range	0~200%
Measuring caliber	Φ4mm
color space	CIE LAB,XYZ,Yxy,LCh,CIE LUV，LAB&WI&YI
colour-difference formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔEcmc(l:c),CIE2000ΔE*00，ΔE（h）
Other chromaticity indexes	WI(ASTM E313，CIE/ISO,AATCC,Hunter)， YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Isochromatic index MT, force component Color fastness
Observer angle	2°/10°
Observation light source	D65，A,C,D50，D55，D75，F1，F2(CWF)，F3，F4，F5，F6，F7(DLF)，
	F8，F9，F10(TPL5)F11(TL84),F12(TL83/U30)
display	Spectrogram / data, sample chroma value, color difference value / graph, qualified / unqualified result, color deviation, color simulation, color parameter setting (Δ e * 94 factor, Δ e * CMC factor, Δ E2000 factor), tolerance prompt, inverted display, time setting, language setting, factory reset
Measuring time	1.5s
Repeatability	Spectral reflectance: within 0.1% of standard deviation (within 0.2% of 400-700nm): Chroma value: within Δ e * AB 0.04 (after correction, measure the average value of white board 30 times in 5S interval)
Inter station error	Δ e * AB within 0.2 (average value of 12 color plates of BCRA series Ⅱ)
size	L x W x H = 90x77x230mm
weight	0.6kg
battery level	Lithium ion polymer lithium battery, 2800 times in 8 hours
Life of lighting source	More than 1.6 million measurements in 5 years
Display	TFT real color 3.5inch, capacitive touch screen
Interface	USB/TTL Print serial port
Store data	More than 10000 (1000 standard samples and 10000 samples)
Operating temperature range	0~40℃（32~104°F）
Storage temperature range	-20~50℃（-4~122°F）

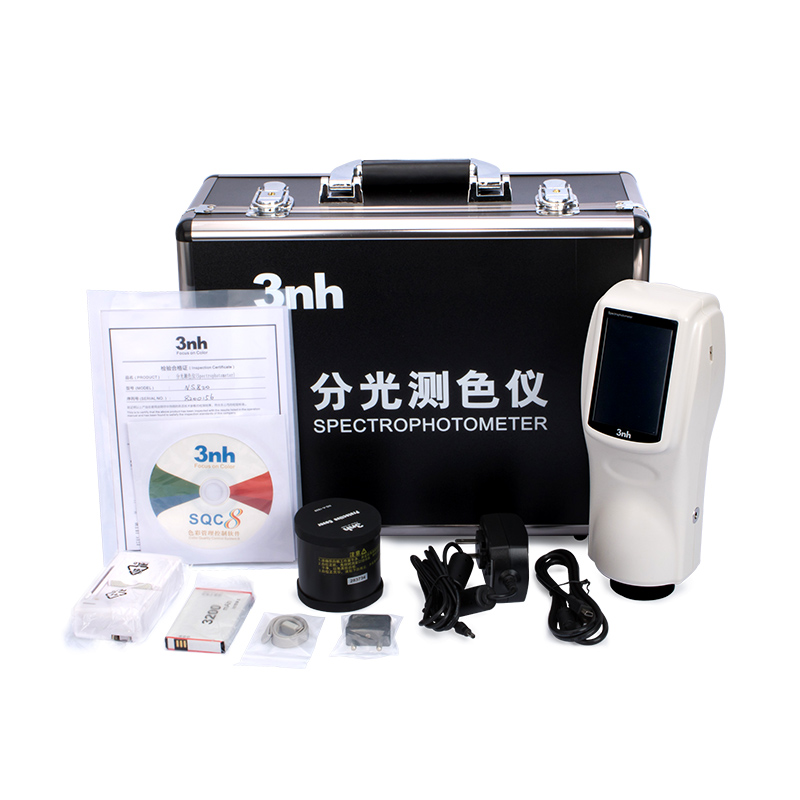

Standard accessories	Power adapter, lithium battery, manual, sqc8 color management quality control analysis software, data line
	Black and white correction cylinder, protective cover, wrist strap
Optional Accessories	Multifunctional test components (liquid, powder, particle, etc.), micro printer, powder test box
Note:	Subject to change without notice
