Commodity details
Actionable Color Measurement Tool for Effect Finishes

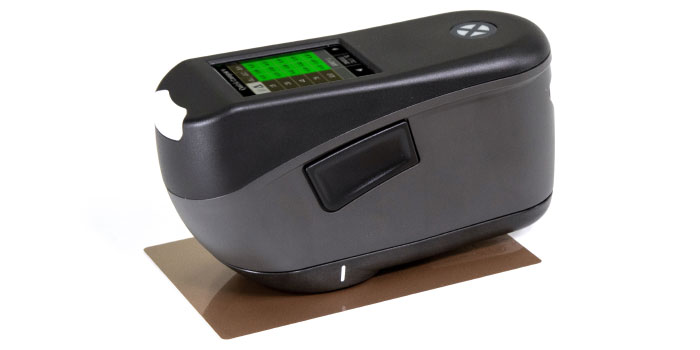

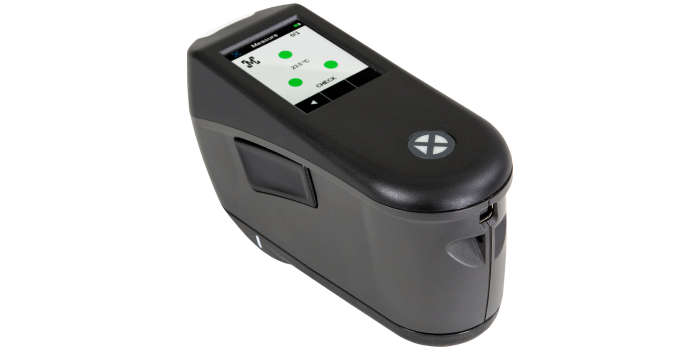

The MA-5 QC is a compact and easy-to-use multi-angle spectrophotometer with five standard measurement angles to accurately evaluate and control metallic colors and special effect finishes. With strategically placed optics, it guides accurate positioning on tight intersections and is light enough to operate with one hand.
The cost-effective MA-5 QC provides actionable data to drive process improvement and ensures color harmony across the supply chain. Since it is compatible with existing X-Rite multi-angle solutions, it fits seamlessly into your color quality control process with little or no downtime. MA-5 QC also optimizes legacy data for measurement compatibility with the MA68II and MA94.
Benefits:
- Minimizes operator fatigue as it is 50% lighter and more compact than any other five-angle device on the market and enables easy one-handed operation.

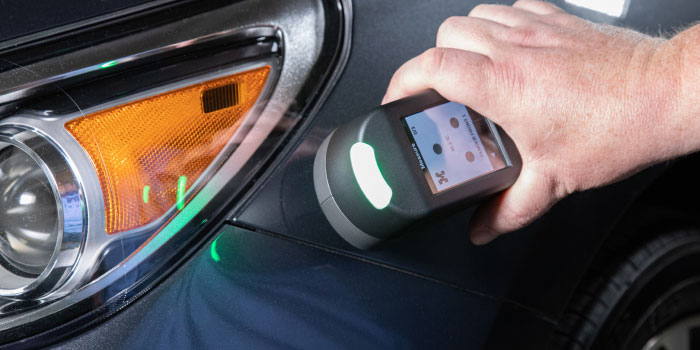

- Illuminates LED indicator lights to ensure proper alignment on samples that are odd-shaped and flexible.
- Captures fast measurements in approximately 2.5 seconds and collects multiple data points when programmed for automated jobs.

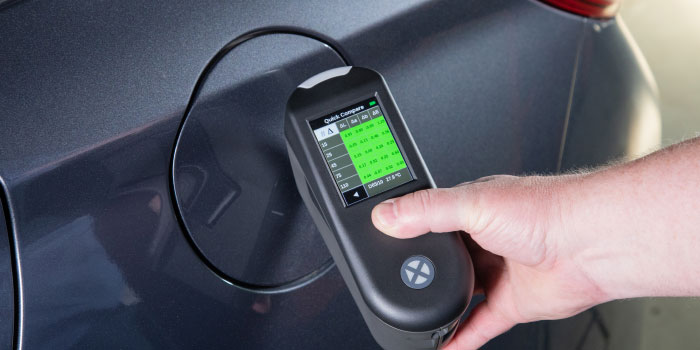

- Provides green and red pass / fail tolerance lights for fail proof-analysis, which are supported by all major indices including DIN6175-2.

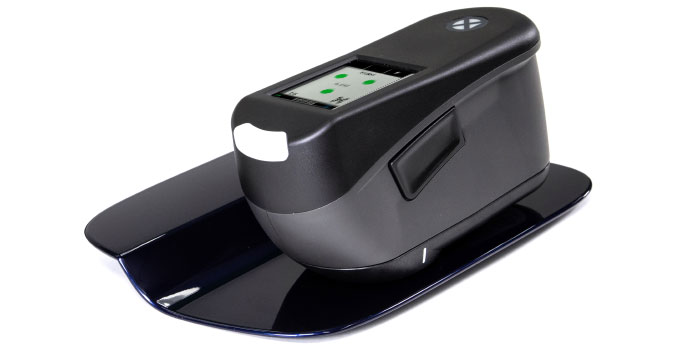

- Includes a docking station to conveniently connect with a PC and automatically charge the device.
| 3rd Party Software Supported | MA 94 emulation mode |
|---|---|
| Battery | Lithium Ion Battery |
| Battery Life | >=2,000 5-angle measurements (continuous measurements at 10s intervals) |
| Calibration | Internal calibration |
| Calibration Interval | 21 days |
| Color Differences | dE*, dE2000; dE cmc, dE DIN 6175, dE Audi 2000 |
| Communication Interface | TFT color display |
| Connectivity | USB 2.0 |
| Dimensions (length, width, height) | L: 180 mm, W: 70 mm, H: 95 mm |
| Humidity | 80% relative humidity |
| Illuminants | D65, A, C, D50, F2, F7, F11, F12, D65 |
| Illumination Colors | white |
| Illumination Spot Size | Pick-up field size: diam. ≈12 mm |
| Instrument Display | TFT color display with resistive touch, 2.8-inch diagonal, QVGA (240 x 320) |
| Inter-Instrument Agreement | Avg. 0.18 ΔE* on BCRA Tile Set |
| Lamp Life | 10 years |
| Languages Supported | E,F, I, Esp, D, P, Ch, J, Kor |
| Light Source | LED |
| Measurement Geometry | r45as15, r45as25, r45as45, r45as75, r45as110 |
| Measurement Time | 2.5 seconds |
| Measurement Working Distance | contact on surface |
| Observers | d2°, d10° |
| Operating Temperature Range | 10°C-35°C |
| Photometric Range | 400 nm -700 nm |
| Photometric Resolution | 10 nm |
| Sample/Measurement | 1000 |
| Short Term Repeatability - White | 0.02 de* |
| Standards | 200 |
| Storage Temperature Range | -20°C - 50°C |
| Unit Color | black |
| Warranty | 12 months |
| Weight | 0.6 kg |
| What's Included? |
• Calibration reference, white tile for spectral • USB cable • Stylus • USB charger with EU, US, UK and China exchangeable plugs • Documentation: Quickstart Guide in ring bound booklet format (as MA-T6/12) • Easy-access, charging docking station • USB Stick with Nucleos EXF QC, using alternative licensing system dongle less and with dongle. • Spare light seal • Screen protector: one mounted, two spare • Wrist strap fitting into docking station • Cleaning cloth |
| Windows |
Windows 7 and higher |
